1Audio, Control and Instrumentation Cables

Audio, Control and Instrumentation Cables (Multi-Core, Unscreened)

Application

For BMS, Sound, Audio, Security, Safety, Control and Instrumentation application
indoor & outdoor.






Product Detail

Product Tags

AIPU BMS Cable Sound Cable Audio Security Safety Cable Control Cable Instrumentation Cable .

1Audio, Control and Instrumentation Cables

Audio, Control and Instrumentation Cables (Multi-Core, Unscreened)

Application

For BMS, Sound, Audio, Security, Safety, Control and Instrumentation application
indoor & outdoor.

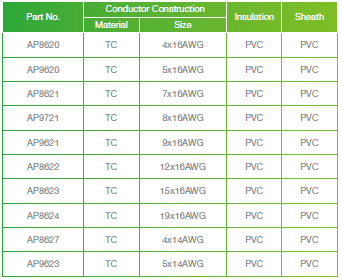

Constructions

1. Conductor: Stranded Oxygen Free Copper or Tinned Copper
2. Insulation: Polyolefin
3. Cabling: Cores laying-up
4. Sheath: PVC/LSZH

»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 70°C

Reference Standards

»» BS EN 60228
»» BS EN 50290
»» RoHS Directives
»» IEC60332-1

Electrical                                              Performance

Operating Voltage                                        600V
Test Voltage                                               1.0 KVdc

57.0 Ω/km (Max. @ 20°C) for 22AWG
39.50 Ω/km (Max. @ 20°C) for 20AWG
Conductor DCR                             25.0 Ω/km (Max. @ 20°C) for 18AWG
14.0 Ω/km (Max. @ 20°C) for 16AWG
9.3 Ω/km (Max. @ 20°C) for 14AWG
Insulation Resistance                  200 MΩhms/km (Min.)

微信图片_20230612165757 微信图片_202306121657571 微信图片_202306121657572 微信图片_202306121657573 微信图片_202306121657574 微信图片_202306121657575 微信图片_202306121657576
