AIPU BS EN50288 Instrumentation Cable Multi Cores Twisted Pairs Cabling Flexible Wire Cable
Application
Connecting instruments and control systems for analogue or digital signal transmission.
Constructions
1. Conductor: Class 1 / 2 / 5 Oxygen Free Copper
2. Insulation: Polyethylene (PE)
3. Cabling: Cores, Pairs, Triples, Quads
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Tinned Copper Wire Braided Screen
Al-PET Tape & Tinned Copper Braided
5. Bedding for armoured cable:
Polyethylene (PE)
PVC
6. Armour (Where Applicable): Galvanized Steel Wire
7. Oversheath: PVC
» Installation Temperature: Above 0°C
» Operating Temperature: -15°C ~ 65°C
» Rated Voltage: 90V, 300V, 500V
» Test Voltage (DC): 2000V Between Conductors;
2000V Between Each Conductor and Armour
Standards
» BS EN 50288-7
» BS EN 60228
» BS EN 50290
» RoHS Directives

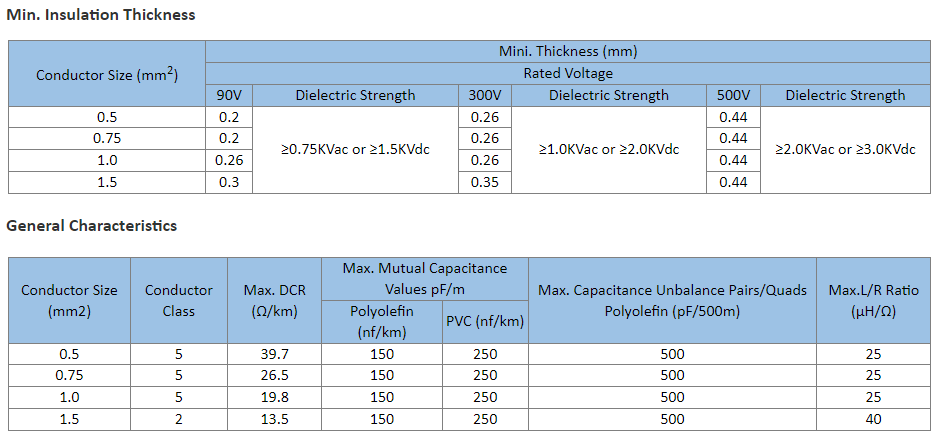

Electrical Performance
