Aipu Cat.5e 4-Pair F/UTP Al-foil Screened Provide 100MHz Bandwidth in 100m, Typical Speed Rate: 100Mbps Network Indoor Cable

Aipu Cat.5e 4-Pair F/UTP Al-foil Screened Provide 100MHz Bandwidth in 100m, Typical Speed Rate: 100Mbps Network  Indoor Cable

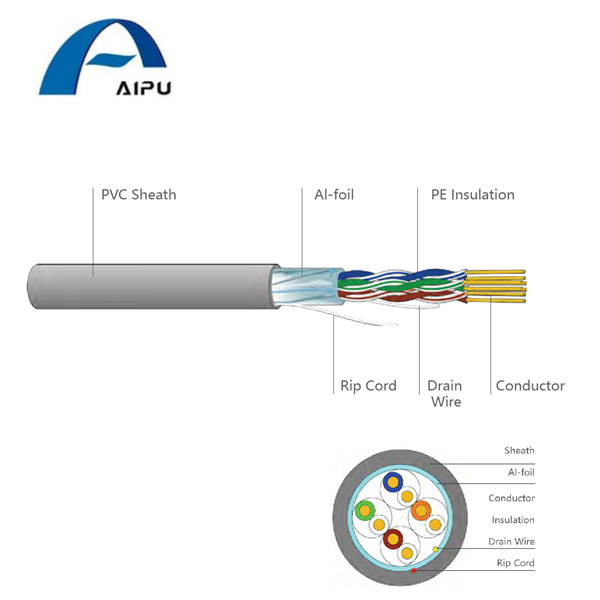

2.Cat.5e 4-Pair FUTP

Description

>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>Anti-EMI for confidential system, widely used for horizontal
cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, reliable electric
transmission, meets or exceeds Cat.5e standard
>Wrapping 0.06mm thickness Al-foil over 4pairs to improve antiinterference
to 85dB, which is 20dB higher than UTP cable, used
in EMI environment for signal screen and confidentiality

Standard

YD/T 1019-2013

Specification

Parameter                                   Data
Conductor Diameter :         24AWG
Insulation Diameter:       1.0±0.1mm
Sheath Material :               PVC
Overall Diameter :          6.0±0.3mm
Individual Conductor Resistance :≤ 9.5Ω/100m
Unbalanced DCR Between Pairs :≤ 2.5%
Dielectric, DC, 1min :    1Kv/1min
Capacity Max :    ≤ 5.6nF/100m

Order Information

Model No.               Model Name              Package          Unit
APWT-5E-01D             Cat.5e F/UTP              305m/Box          Box


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
