Aipu Cat.5e SF/UTP Braiding Al-foil Screened Provide 100MHz Bandwidth in 100m Typical Speed Rate 100 Mbps Communicate Cable

Aipu Cat.5e SF/UTP Braiding Al-foil Screened Provide 100MHz Bandwidth in 100m Typical Speed Rate 100 Mbps  Communicate Cable

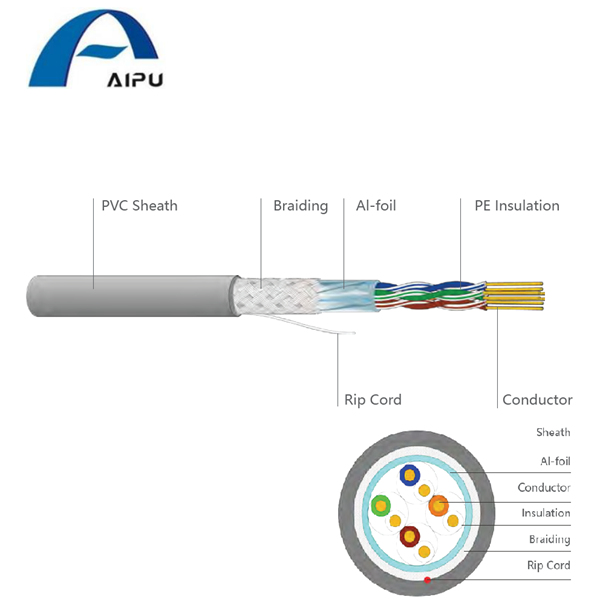

3.Cat.5e SFUTP

Description

>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>Anti-EMI function for high-level confidential system, widely used
for horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, reliable electric
transmission, meets or exceeds Cat.5e standard
>rapping 0.06mm thickness Al-foil and TC braiding screen over 4p
wires to improve anti-interference to 90dB, which is 25dB higher
than UTP cable, used in EMI environment for high-level signal
screen and confidentiality.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Aipu Cat.5e SF/UTP Braiding Al-foil Screened Provide 100MHz Bandwidth in 100m Typical Speed Rate 100 Mbps  Communicate Cable

    3.Cat.5e SFUTP

    Description

    >Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
    >Anti-EMI function for high-level confidential system, widely used
    for horizontal cabling in working area and LAN indoor
    >High grade OFC (oxygen free copper) conductor, reliable electric
    transmission, meets or exceeds Cat.5e standard
    >rapping 0.06mm thickness Al-foil and TC braiding screen over 4p
    wires to improve anti-interference to 90dB, which is 25dB higher
    than UTP cable, used in EMI environment for high-level signal
    screen and confidentiality.

    Standard

    YD/T 1019-2013

    Specification

    Parameter                                                Data
    Conductor Diameter                               24AWG
    Insulation Diameter                           0.92±0.02mm
    Sheath Material                                    PVC
    Overall Diameter                                6.4±0.2mm
    Individual Conductor Resistance   ≤ 9.5Ω/100m
    DC Resistance Unbalance                ≤ 2.5%
    Dielectric, DC, 1min                         1Kv/1min
    Capacity Max                                   ≤ 5.6nF/100m

    Order Information

    Model No.            Model Name               Package               Unit
    APWT-5E-01S     Cat.5e SF/UTP               305m/Reel                Reel
