    Aipu Cat5e Indoor Cable Multi-Pair Cable LAN Network Cable

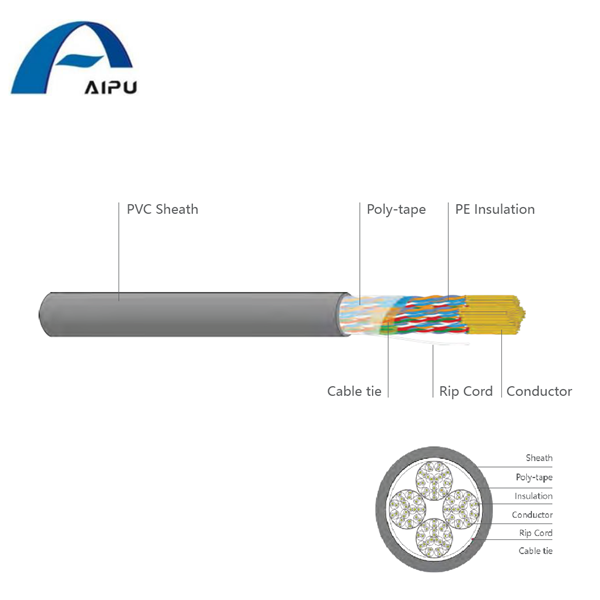

    2.Cat.3 Multi-pair Cable

    Description

    >Provide 16MHz bandwidth in 100m, typical speed rate: 20Mbps
    >It’s widely used for backbone of indoor audio cabling.
    >High grade OFC (oxygen free copper) conductor, reliable transmission performance, meets or exceeds Cat.3 standard for both analog audio cabling and high quality digital audio system; core marked by complete color spectrum, perfect strand length for convenient installation.

    Standard

    YD/T 1019-2013
    YD/T 926.2-2009

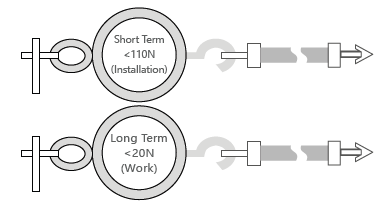

    Installation Tension:

    <110N (short term), <20N (long term)

    5

    Specification

    Parameter                                                      Data
    Conductor Diameter                                      0.4mm
    Insulation Diameter                                   0.78±0.02mm
    Sheath Material                                                 PVC
    Individual Conductor Resistance           ≤ 14Ω/100m
    DC Resistance Unbalance                        ≤ 2.5%
    Dielectric, DC, 1min                                      1Kv/1min
    Capacity Max                                             ≤ 5.6nF/100m

    Order Information

    Wooden reel, 305m(1000FT)/Reel
