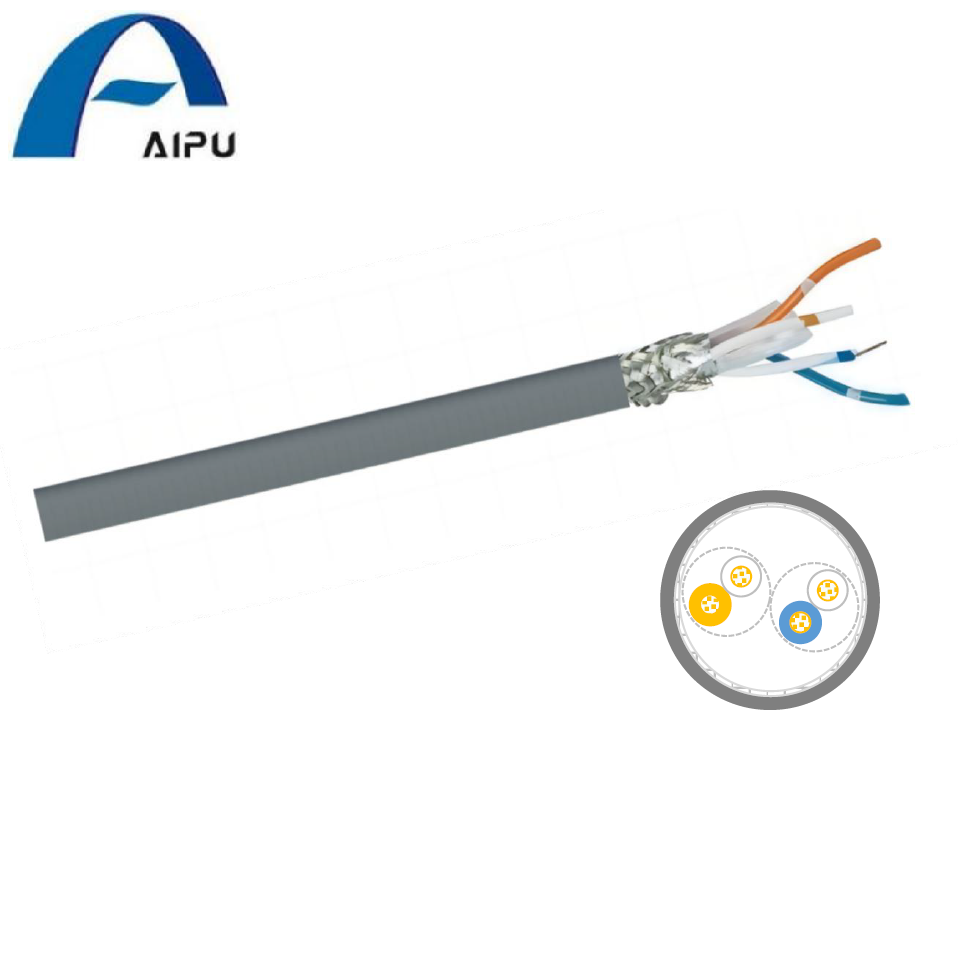

Aipu Control Cable PE Multi-pairs Foiled Braided PVC Outer Sheath Data Highway RS 232 RS 422 RS 485 Interfaces Instrumentation Cable Industrial Cable

CONSTRUCTION
Conductor Tinned annealed copper wires class 2
Insulation PE
Core Identification 1P = WH/BU, 2P = WH/OG
Shield Cores twisted together in pairs with 100% aluminium foiling, Tinned annealed copper drain
wire,Tinned annealed copper braiding
Sheath PVC, Color with pebble grey (RAL 7032)

STANDARDS
PVC self-extinguishing and flame retardant acc. to IEC 60332- 1- 2 / VW- 1
CHARACTERISTICS
Voltage Rating 30V
Testing Voltage 1000kV
Temperature Rating – 30°C to +80°C
Minimum Bending Radius flexing 20 x cable Ø, fixed 15 x cable Ø

APPLICATION
Ideal for wiring of data systems with high transmission rates, CAD/CAM systems . It is designed for use as Data
Highway in (DH) RS 232, RS 422 and RS 485 interfaces and also suitable as control and instrumentation cable in
industrial equipment . Suitable for flexible and static installation in dry and damp locations
