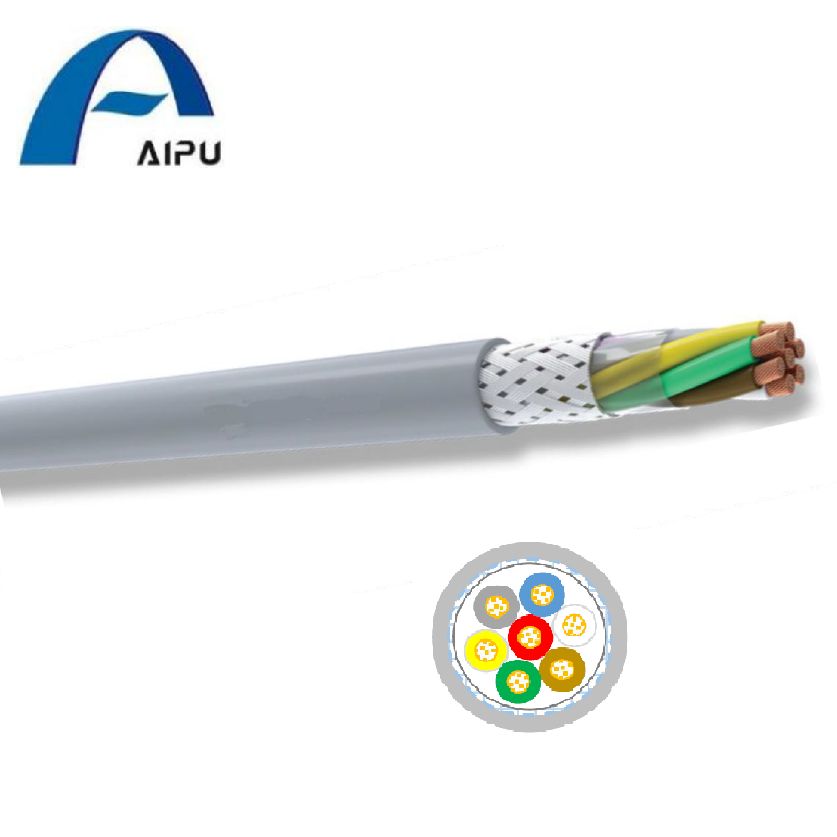

Aipu FROHH2R16 Network Cable Indoor Cable 7 Cores Cabling Wire

CONSTRUCTION
Conductor Plain annealed copper wire, Multi strands
Insulation Polyvinyl chloride – PVC
Core Identification In according to HD 308
Wrapping at least 1 layer of plastic tape 0,023 mm
Collective Screen Aluminium / PETP + Tinned Copper Braid
Sheath Polyvinyl chloride Flame Retardant – PVC FR
Sheath Colour Grey RAL 7032

APPLICATION
Suitable for connection of movable equipment or for fixed laying in areas with risk of fire.To be used in dry or wet
interiors and for occasional or temporary use outdoor. Not allowed for laying underground even if protected.


Product Detail

Product Tags

2.FROHH2R16

CONSTRUCTION
Conductor Plain annealed copper wire, Multi strands
Insulation Polyvinyl chloride – PVC
Core Identification In according to HD 308
Wrapping at least 1 layer of plastic tape 0,023 mm
Collective Screen Aluminium / PETP + Tinned Copper Braid
Sheath Polyvinyl chloride Flame Retardant – PVC FR
Sheath Colour Grey RAL 7032

STANDARDS
EN 50414, CEI EN 60332-1-2, CEI 20-22 II, CEI EN 50267-2
CHARACTERISTICS
Voltage Rating Uo/U From 0,14 mm2 to 0,75 mm2: 300/500 V
From 1,00 mm2 to 6,00 mm2: 450/750 V
Testing Voltage 2000kV, Core-Core and Core-Screen
Temperature Rating – 30°C to +80°C
Minimum Bending Radius 8 x cable Ø

APPLICATION
Suitable for connection of movable equipment or for fixed laying in areas with risk of fire.To be used in dry or wet
interiors and for occasional or temporary use outdoor. Not allowed for laying underground even if protected.

DIMENSION



微信图片_20230612165757 微信图片_202306121657571 微信图片_202306121657572 微信图片_202306121657573 微信图片_202306121657574 微信图片_202306121657575 微信图片_202306121657576
