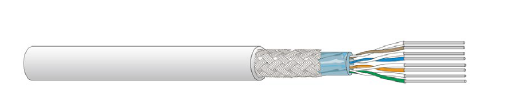

Aipu RS-232/422 Cable Twist Pairs 7 Pairs 14 Cores Computer Cable

Application
For EIA RS-232 or RS-422 applications, used as computer cables.

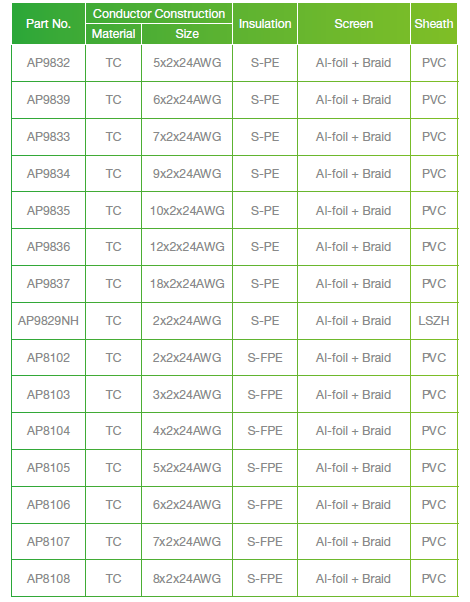

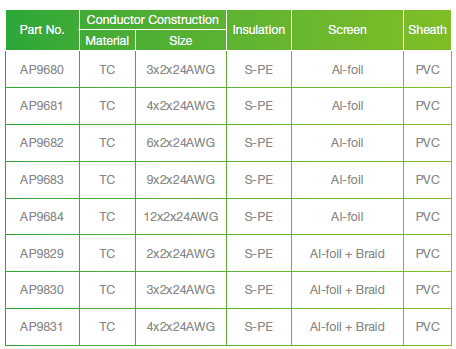

Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE, S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
                     Al-PET tape with Tinned Copper Drain Wire
                     Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH

»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C

Reference Standards

»» UL 2919, 2493
»» BS EN 60228
»» BS EN 50290
»» RoHS Directives

Electrical                                                Performance

Working Voltage                                    30V
Characteristic Impedance                 100 Ω ± 15 Ω
Velocity of Propagation S-FPE:      78%, SPE: 66%
Capacitance                                        55 pF/m for Conductor to Conductor
                                                              95 pF/m for Conductor to Other Conductor & Screen

Conductor DCR                                91.80 Ω/km (Max. @ 20°C) for 24AWG
