Aipu Tvvbg Cat. 5e Cat. 6 Sf UTP Flat Elevator Cable Multi-Stranded Galvanized Steel Wire Coaxial Cable

 Aipu Tvvbg Cat. 5e Cat. 6 Sf UTP Flat Elevator Cable Multi-Stranded Galvanized Steel Wire Coaxial Cable

3.Cat.5e Multi-pair Cable

Description

>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>It’s widely used for backbone of indoor audio cabling & Data system (Cat.5 Standard)
>High grade OFC (oxygen free copper) conductor, reliable transmission performance, meet or exceeds Cat.5 standard for both analog audio cabling and high quality digital audio system;
core marked by complete color spectrum, perfect strand length for convenient installation






Product Detail

Product Tags

 Aipu Tvvbg Cat. 5e Cat. 6 Sf UTP Flat Elevator Cable Multi-Stranded Galvanized Steel Wire Coaxial Cable

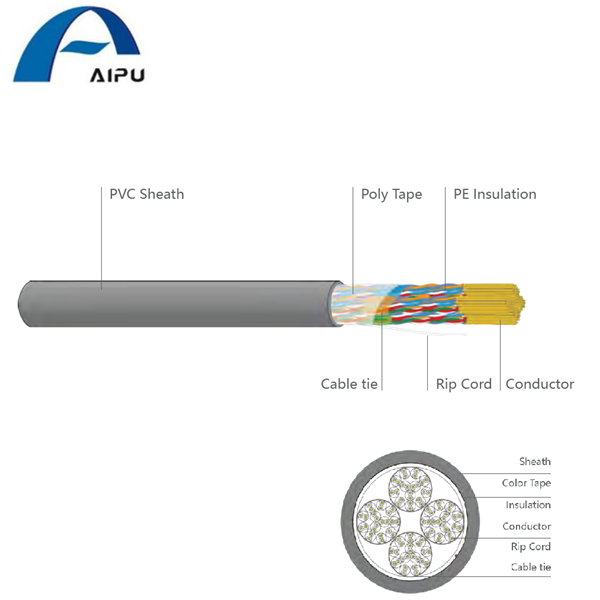

3.Cat.5e Multi-pair Cable

Description

>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>It’s widely used for backbone of indoor audio cabling & Data system (Cat.5 Standard)
>High grade OFC (oxygen free copper) conductor, reliable transmission performance, meet or exceeds Cat.5 standard for both analog audio cabling and high quality digital audio system;
core marked by complete color spectrum, perfect strand length for convenient installation

6

Standard

YD/T 1019-2013
YD/T 926.2-2009

Specification

Parameter                                                Data
Conductor Diameter                                  0.5mm
Insulation Diameter                              0.88±0.02mm
Sheath Material                                       PVC
Individual Conductor Resistance           ≤ 9.5Ω/100m
DC Resistance Unbalance                        ≤ 2.5%
Dielectric, DC, 1min                              1Kv/1min
Capacity Max                                          ≤ 5.6nF/100m

Order Information

Wooden Reel, 305m(1000FT)/Reel

1

微信图片_20230612165757 微信图片_202306121657571 微信图片_202306121657572 微信图片_202306121657573 微信图片_202306121657574 微信图片_202306121657575 微信图片_202306121657576
