Belden Equivalent Cable
-

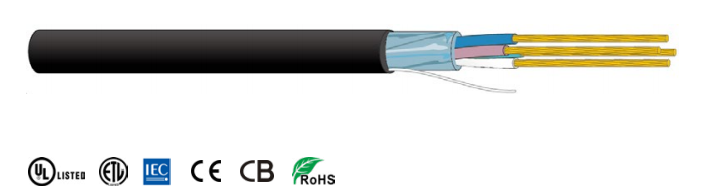

Aipu Multi-Core Screened Sound Cable 7 Cores Audio Security Safety Control Instrumentation Cable
ApplicationFor BMS, Sound, Audio, Security, Safety, Control and Instrumentation applicationindoor & outdoor.Constructions1. Conductor: Stranded Tinned Copper Wire2. Insulation: Polyolefin, PVC3. Cabling: Cores laying-up4. Screened: Individually Screened (Optional)Al-PET tape with Tinned Copper Drain WireTinned Copper BraidedTinned Copper Spiral5. Sheath: PVC/LSZH -

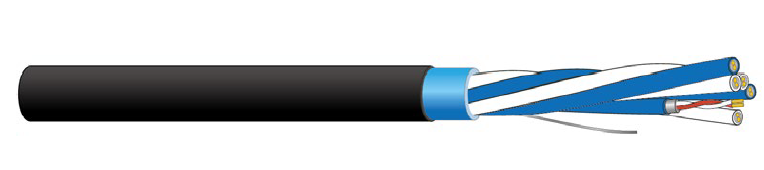

Aipu BMS Control Cable Audio BS EN 60228 50290 Sound Cable 4 Pairs 8 Cores Twist Pair Cable
ApplicationFor BMS, Sound, Audio, Security, Safety, Control and Instrumentation applicationindoor & outdoor.Constructions1. Conductor: Stranded Tinned Copper Wire2. Insulation: Polyolefin, PVC3. Cabling: Twist Pairs laying-up4. Screened: Individually Screened (Optional)Al-PET tape with Tinned Copper Drain Wire5. Sheath: PVC/LSZH -
Aipu Speaker Cable Indoor Outdoor Stranded Oxygen Free Copper Twist Pairs 2 Cores
Application
For loudspeaker application indoor & outdoor.
Constructions
1. Conductor: Stranded Oxygen Free Copper
2. Insulation: Polyolefin
3. Cabling: Cores laying-up
4. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 70°C -

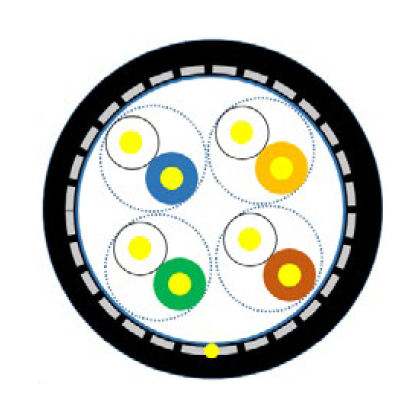

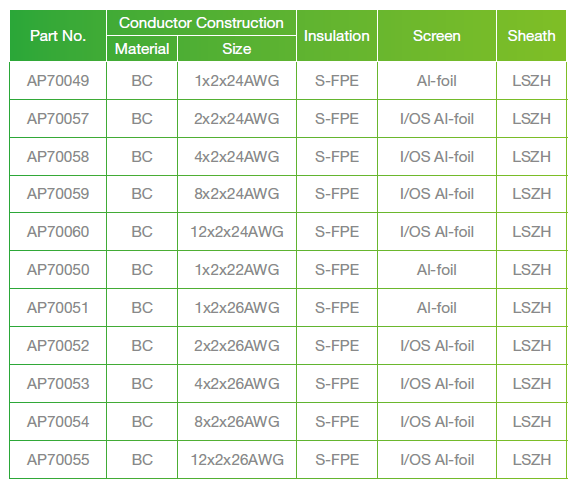

Aipu Digital Audio Transmission Cable PVC/LSZH Individually Screened Al-PET Tape with Tinned Copper Drain Wire Al-PET Tape & Tinned Copper Braided
Application
For digital audio transmission.
Constructions
1. Conductor: Stranded Oxygen Free Copper
2. Insulation: S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH»» Insulation cores are in blue and white color with number printed.
»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°CReference Standards
»» BS EN 60228
»» BS EN 50290
»» RoHS DirectivesElectrical Performance
Velocity of Propagation 76%
Impedance 0.1-6MHz 110 Ω ± 15 Ω
Test Voltage 1.0 KVdc
Conductor DCR 134 Ω/km (Max. @ 20°C) for 26AWG
89.0 Ω/km (Max. @ 20°C) for 24AWG
56.0 Ω/km (Max. @ 20°C) for 22AWG
Contact us to get product catalog
-

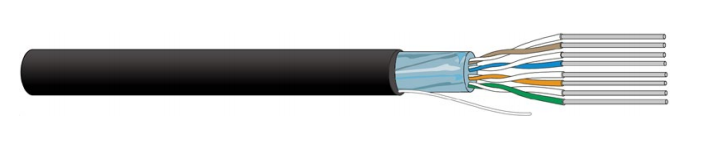

Aipu Analog Audio Transmission Cable 4 Pairs 8 Cores Twist Pairs Al-PET Tape with Tinned Copper Drain Wire Al-PET Tape & Tinned Copper Braided
Application
For analog audio transmission.
Constructions
1. Conductor: Stranded Oxygen Free Copper
2. Insulation: S-PE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH»» Insulation cores are in blue and white color with number printed.
»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C -
Aipu RS-422 Computer Cable Stranded Tinned Copper Wire Twist Pairs 4 Pairs 8 Cores Individually Al-PET Tape PVC LSZH
Application
For EIA RS 422 applications, used as computer cables.Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Al-PET tape with Tinned Copper Drain Wire
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C -
Aipu RS-232/422 Cable Twist Pairs 7 Pairs 14 Cores Computer Cable
Application
For EIA RS-232 or RS-422 applications, used as computer cables.
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE, S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH -
Aipu RS-232 CAD/CAM Cable Multi-Pair Foil & Braid Screened Computer Cables PVC/LSZH
Application
For EIA RS-232 and CAD/CAM applications, used as computer cables.
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: PVC, Polyolefin
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C -
Aipu RS-232 Cable Application Multi-Core Foil & Braid Screened Transmission as Audio Control and Instrumentation Cables
Application
For low data rate transmission as audio, control and instrumentation cables.
Constructions
1.Conductor: Stranded Tinned Copper Wire
2. Insulation: PVC
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C -
Aipu RS-232 Cable Multi Pairs Foil Screened Audio Control Instrumentation Cables
Application
For low data rate transmission as audio, control and instrumentation cables.
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: PE, PVC, Polyolefin
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET tape with Tinned Copper Drain Wire
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C -
Aipu RS-232 Cable Multi Core Foil Screened Twist Pairs Audio Control Instrumentation Cables
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: PE, PVC, Polyolefin
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET tape with Tinned Copper Drain Wire
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°CApplication
For low data rate transmission as audio, control and instrumentation cables.
-
Aipu EIA RS-485 Cable LSZH Data Communication Automation System Twist Pairs Cable
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE, S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Tinned Copper Wire Braided Screen
Al-PET Tape & Tinned Copper Braided
5. Bedding for Armoured Cable (Where Applicable):
Polyethylene (PE)
PVC
6. Armour (Where Applicable): Galvanized Steel Wire
7. Oversheath: PVC/LSZHApplication
For data communication and automation systems, microprocessor to device, etc
