[AipuWaton] Understanding the Maximum Transmission Distance of PoE Technology

Power over Ethernet (PoE) technology has transformed the way we deploy network devices by allowing both power and data to be transmitted over standard Ethernet cabling. However, many users wonder what the maximum transmission distance for PoE is. Understanding the factors that influence this distance is essential for effective network planning and execution.

640

What Determines the Maximum Distance of PoE?

The critical element in determining the maximum distance for PoE is the quality and type of the twisted pair cable used. Common cabling standards include:

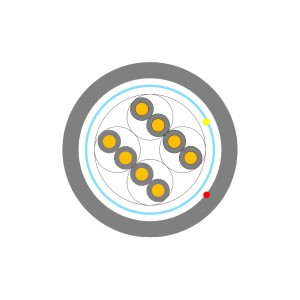

Shanghai-Aipu-Waton-Electronic-Industries-Co-Ltd-

Category 5 (Cat 5)

Supports speeds up to 100 Mbps

Category 5e (Cat 5e)

Enhanced version with better performance, also supporting 100 Mbps.

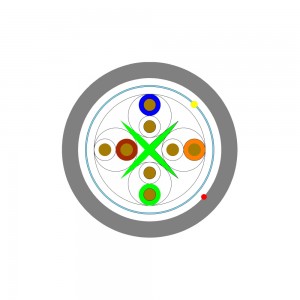

Category 6 (Cat 6)

Can handle speeds up to 1 Gbps.

Regardless of the cable type, industry standards establish a maximum effective transmission distance of 100 meters (328 feet) for data connections over Ethernet cables. This limit is crucial for maintaining data integrity and ensuring reliable communications.

The Science Behind the 100-Meter Limit

When transmitting signals, twisted pair cables experience resistance and capacitance, which can lead to signal degradation. As a signal traverses the cable, it can incur:

Attenuation:

The loss of signal strength over distance.

Distortion:

Alterations to the signal waveform, impacting data integrity.

Once the signal quality diminishes beyond acceptable thresholds, it affects effective transmission rates and can lead to data loss or packet errors.

640

Calculating the Transmission Distance

For 100Base-TX, which operates at 100 Mbps, the time to transmit one bit of data, known as the "bit time," is calculated as follows:

[ \text{Bit Time} = \frac{1}{100 , \text{Mbps}} = 10 , \text{ns} ]

This transmission method utilizes CSMA/CD (Carrier Sense Multiple Access with Collision Detection), allowing for efficient collision detection on shared networks. However, if the cable length exceeds 100 meters, the likelihood of detecting collisions diminishes, risking data loss.

It's important to note that while the maximum length is set at 100 meters, certain conditions may allow for some flexibility. Lower speeds, for example, might extend usable distances up to 150-200 meters, depending on cable quality and network conditions.

Practical Cable Length Recommendations

In real-world installations, adhering strictly to the 100-meter limit is advisable. However, many network professionals recommend maintaining a distance of 80 to 90 meters to ensure reliability and minimize any potential quality issues. This safety margin helps accommodate variations in cable quality and installation conditions.

640 (1)

While high-quality cables can sometimes exceed the 100-meter limit without immediate issues, this approach is not recommended. Potential problems may manifest over time, leading to significant network disruptions or inadequate functionality after upgrades.

微信图片_20240612210529

Conclusion

To summarize, the maximum transmission distance for PoE technology is primarily influenced by the category of twisted pair cables and the physical limitations of signal transmission. The 100-meter limit is established to help maintain data integrity and reliability. By following recommended installation practices and understanding the underlying principles of Ethernet transmission, network professionals can ensure robust and efficient network performance.
