Products
-
AIPU BMS Cable Sound Cable Audio Security Safety Cable Control Cable Instrumentation Cable .
AIPU BMS Cable Sound Cable Audio Security Safety Cable Control Cable Instrumentation Cable .
Audio, Control and Instrumentation Cables (Multi-Core, Unscreened)
Application
For BMS, Sound, Audio, Security, Safety, Control and Instrumentation application
indoor & outdoor. -

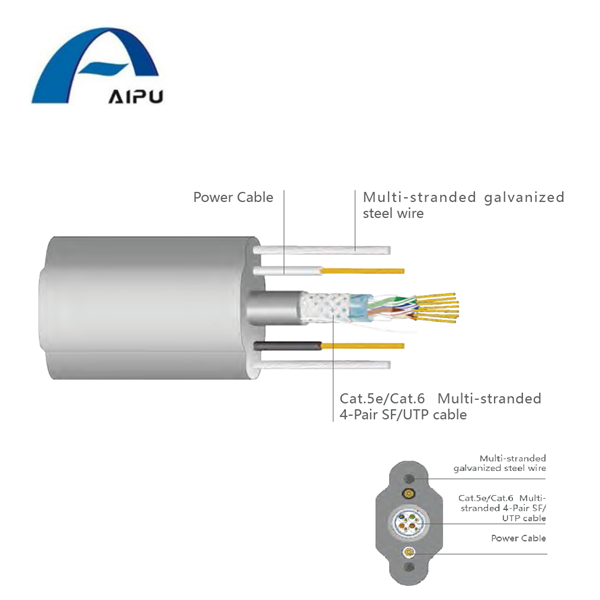

Aipu Coaxial Cable Tvvbg Cat. 5ecat. 6 Sfutp+2X0.75 Flat Elevator Cable Multiple Purpose Cable
Aipu Coaxial Cable Tvvbg Cat. 5ecat. 6 Sfutp+2X0.75 Flat Elevator Cable Multiple Purpose Cable
Description
>Flat elevator cable is widely applied for multiple purpose. It is
consist of Cat.5e/Cat.6 multi-stranded 4-pair SF/UTP cable and 2
multi-stranded galvanized steel wires. -
Aipu Tvvbg Cat. 5e Cat. 6 Sf UTP Flat Elevator Cable Multi-Stranded Galvanized Steel Wire Coaxial Cable
Aipu Tvvbg Cat. 5e Cat. 6 Sf UTP Flat Elevator Cable Multi-Stranded Galvanized Steel Wire Coaxial Cable
Description
>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>It’s widely used for backbone of indoor audio cabling & Data system (Cat.5 Standard)
>High grade OFC (oxygen free copper) conductor, reliable transmission performance, meet or exceeds Cat.5 standard for both analog audio cabling and high quality digital audio system;
core marked by complete color spectrum, perfect strand length for convenient installation -
Aipu Cat5e Indoor Cable Multi-Pair Cable LAN Cable Network Cable
Aipu Cat5e Indoor Cable Multi-Pair Cable LAN Network Cable
Description
>Provide 16MHz bandwidth in 100m, typical speed rate: 20Mbps
>It’s widely used for backbone of indoor audio cabling.
>High grade OFC (oxygen free copper) conductor, reliable transmission performance, meets or exceeds Cat.3 standard for both analog audio cabling and high quality digital audio system; core marked by complete color spectrum, perfect strand length for convenient installation. -
Aipu Cat8 Network Cable 2000MHz Bandwidth LAN Cable Typical Speed Rate 25/40gbps All Screened Data Cable
Aipu Cat8 Network Cable 2000MHz Bandwidth LAN Cable Typical Speed Rate 25/40gbps All Screened Data Cable
>Provide up to 2000MHz bandwidth, typical speed rate: 25/40Gbps
>Optimal Cat.8 design (S/FTP) for high-level shield confidential system anti-EMI, used in horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, chemical foam PE insulation, reliable transmission performance, meets and exceeds
>Cat.8 standard Wrapping Al-foil paired separately and TC braid screen over 4 pairs to improve anti-interference to 90dB, 25dB higher than UTP cable, used in EMI environment for high-level signal screen and confidentiality. -
Aipu Cat.5e SF/UTP Braiding Al-foil Screened Provide 100MHz Bandwidth in 100m Typical Speed Rate 100 Mbps Communicate Cable
Aipu Cat.5e SF/UTP Braiding Al-foil Screened Provide 100MHz Bandwidth in 100m Typical Speed Rate 100 Mbps Communicate Cable
Description
>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>Anti-EMI function for high-level confidential system, widely used
for horizontal cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, reliable electric
transmission, meets or exceeds Cat.5e standard
>rapping 0.06mm thickness Al-foil and TC braiding screen over 4p
wires to improve anti-interference to 90dB, which is 25dB higher
than UTP cable, used in EMI environment for high-level signal
screen and confidentiality. -
Aipu Cat.5e 4-Pair F/UTP Al-foil Screened Provide 100MHz Bandwidth in 100m, Typical Speed Rate: 100Mbps Network Indoor Cable
Aipu Cat.5e 4-Pair F/UTP Al-foil Screened Provide 100MHz Bandwidth in 100m, Typical Speed Rate: 100Mbps Network Indoor Cable
Description
>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>Anti-EMI for confidential system, widely used for horizontal
cabling in working area and LAN indoor
>High grade OFC (oxygen free copper) conductor, reliable electric
transmission, meets or exceeds Cat.5e standard
>Wrapping 0.06mm thickness Al-foil over 4pairs to improve antiinterference
to 85dB, which is 20dB higher than UTP cable, used
in EMI environment for signal screen and confidentialityStandard
YD/T 1019-2013
Specification
Parameter Data
Conductor Diameter : 24AWG
Insulation Diameter: 1.0±0.1mm
Sheath Material : PVC
Overall Diameter : 6.0±0.3mm
Individual Conductor Resistance :≤ 9.5Ω/100m
Unbalanced DCR Between Pairs :≤ 2.5%
Dielectric, DC, 1min : 1Kv/1min
Capacity Max : ≤ 5.6nF/100mOrder Information
Model No. Model Name Package Unit
APWT-5E-01D Cat.5e F/UTP 305m/Box Box
-
Aipu Cat.5e UTP Network Indoor Cable Provide 100MHz Bandwidth in 100m, Typical Speed Rate: 100Mbps
Aipu Cat.5e UTP Network Indoor Cable Provide 100MHz Bandwidth in 100m, Typical Speed Rate: 100Mbps
Description
>Provide 100MHz bandwidth in 100m, typical speed rate: 100Mbps
>Widely used for horizontal cabling in working area and LAN
indoor
>Superior OFC (oxygen free copper) conductor, reliable electric
transmission, meets or exceeds Cat.5e standard, provide plentiful
redundancy for system link, fast and convenient installationStandard
YD/T 1019-2013
Specification
Parameter Data
Conductor Diameter :24AWG
Insulation Diameter :0.88±0.01mm
Sheath Material: PVC
Overall Diameter: 5.4±0.2mm
Individual Conductor Resistance: ≤ 9.5Ω/100m
DC Resistance Unbalance :≤ 2.5%
Dielectric, DC, 1min :1Kv/1min
Capacity Max: 5.6nF/100mOrder Informaiton
Model No. Model Name Package Unit
APWT-5E-01 Cat.5e UTP 4Pairs 305m/Box Box -
-
-
-
