Aipu RS-422 Computer Cable Stranded Tinned Copper Wire Twist Pairs 4 Pairs 8 Cores Individually Al-PET Tape PVC LSZH
Application
For EIA RS 422 applications, used as computer cables.Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Al-PET tape with Tinned Copper Drain Wire
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C -
Aipu RS-232/422 Cable Twist Pairs 7 Pairs 14 Cores Computer Cable
Application
For EIA RS-232 or RS-422 applications, used as computer cables.
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE, S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH -
Aipu RS-232 CAD/CAM Cable Multi-Pair Foil & Braid Screened Computer Cables PVC/LSZH
Application
For EIA RS-232 and CAD/CAM applications, used as computer cables.
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: PVC, Polyolefin
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C -
Aipu RS-232 Cable Application Multi-Core Foil & Braid Screened Transmission as Audio Control and Instrumentation Cables
Application
For low data rate transmission as audio, control and instrumentation cables.
Constructions
1.Conductor: Stranded Tinned Copper Wire
2. Insulation: PVC
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET Tape & Tinned Copper Braided
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C -
Aipu RS-232 Cable Multi Pairs Foil Screened Audio Control Instrumentation Cables
Application
For low data rate transmission as audio, control and instrumentation cables.
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: PE, PVC, Polyolefin
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET tape with Tinned Copper Drain Wire
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°C -
Aipu RS-232 Cable Multi Core Foil Screened Twist Pairs Audio Control Instrumentation Cables
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: PE, PVC, Polyolefin
3. Cabling: Cores, Twist Pairs laying-up
4. Screened: Al-PET tape with Tinned Copper Drain Wire
5. Sheath: PVC/LSZH»» Installation Temperature: Above 0°C
»»Operating Temperature: -15°C ~ 65°CApplication
For low data rate transmission as audio, control and instrumentation cables.
-
Aipu EIA RS-485 Cable LSZH Data Communication Automation System Twist Pairs Cable
Constructions
1. Conductor: Stranded Tinned Copper Wire
2. Insulation: S-PE, S-FPE
3. Cabling: Twist Pairs laying-up
4. Screened: Individually Screened (Optional)
Al-PET tape with Tinned Copper Drain Wire
Tinned Copper Wire Braided Screen
Al-PET Tape & Tinned Copper Braided
5. Bedding for Armoured Cable (Where Applicable):
Polyethylene (PE)
PVC
6. Armour (Where Applicable): Galvanized Steel Wire
7. Oversheath: PVC/LSZHApplication
For data communication and automation systems, microprocessor to device, etc -
Aipu Control Cable PE Multi-pairs Foiled Braided PVC Outer Sheath Data Highway RS 232 RS 422 RS 485 Interfaces Instrumentation Cable Industrial Cable
PE multi-pairs, foiled and braided, PVC outer sheath
CONSTRUCTION
Conductor Tinned annealed copper wires class 2
Insulation PE
Core Identification 1P = WH/BU, 2P = WH/OG
Shield Cores twisted together in pairs with 100% aluminium foiling, Tinned annealed copper drain
wire,Tinned annealed copper braiding
Sheath PVC, Color with pebble grey (RAL 7032)APPLICATION
Ideal for wiring of data systems with high transmission rates, CAD/CAM systems . It is designed for use as Data
Highway in (DH) RS 232, RS 422 and RS 485 interfaces and also suitable as control and instrumentation cable in
industrial equipment . Suitable for flexible and static installation in dry and damp locations -
Aipu FROHH2R16 Network Cable Indoor Cable 7 Cores Cabling Wire
CONSTRUCTION
Conductor Plain annealed copper wire, Multi strands
Insulation Polyvinyl chloride – PVC
Core Identification In according to HD 308
Wrapping at least 1 layer of plastic tape 0,023 mm
Collective Screen Aluminium / PETP + Tinned Copper Braid
Sheath Polyvinyl chloride Flame Retardant – PVC FR
Sheath Colour Grey RAL 7032APPLICATION
Suitable for connection of movable equipment or for fixed laying in areas with risk of fire.To be used in dry or wet
interiors and for occasional or temporary use outdoor. Not allowed for laying underground even if protected. -

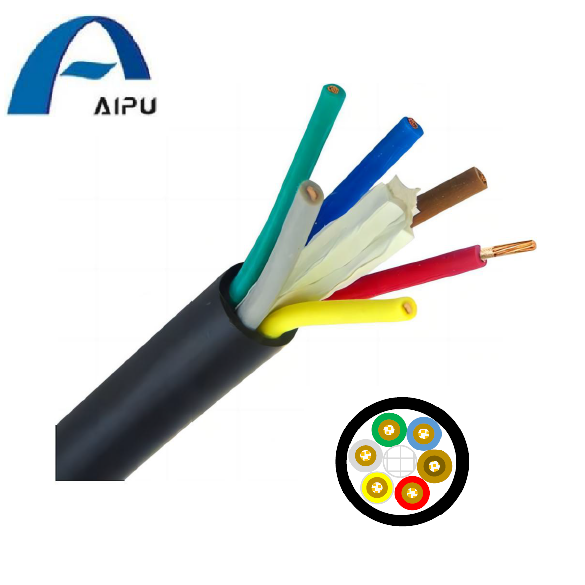

Aipu FFX200 05mROZ1-R/F 3P0.75 Airport Communication Cable
Aipu FFX200 05mROZ1-R/F 3P0.75 Airport Communication Cable
APPLICATION
The cables are 3 pairs stranded flexible cables sheathed with thermoplastic LSZH compound. The cables have the
ability to restrict the propagation of the flame in the event of a fire. This is especially important to slow down the
spreading of the fire as the cables may pass from one area to another within a building. Applications can be found in
control and power circuits, power stations, underground tunnels, lifts, escalators, and high-rise buildings. -
-
